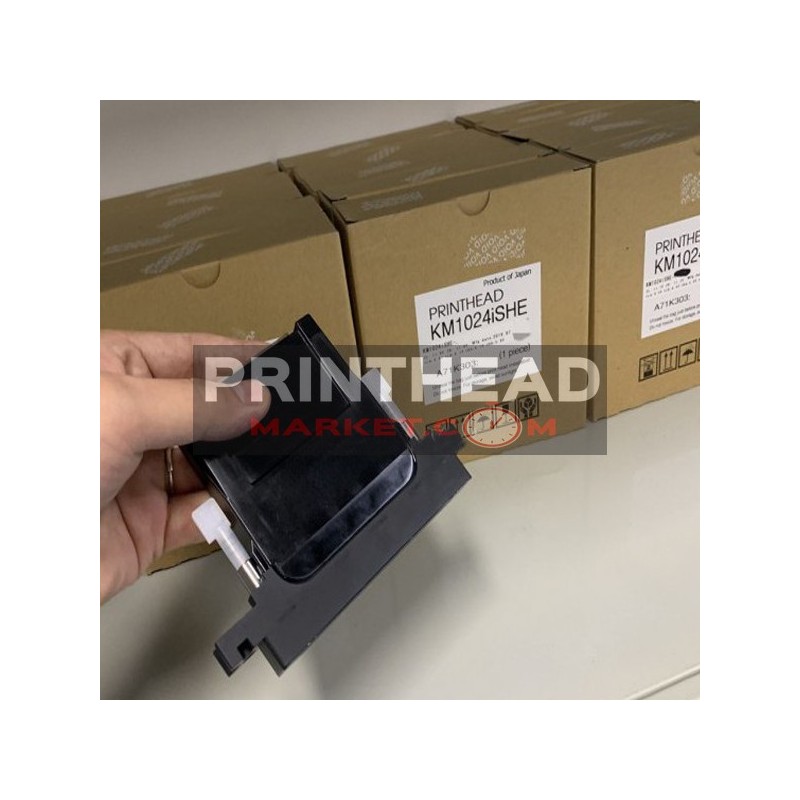

KM1024i SHE 6PL Printhead New Konica Minolta

1024i Km1024i She Japan KM HS2000 UV Print Head Replace Konica 1024i KM1024i SHE 6pl Printhead

Brand New Konica Minolta 1024i Printhead KM1024i 6PL SHE Printhead for Allwin Konica UV Ink Flat Printer

New Original Konica KM1024i SHE 6PL Printhead for Flora Ceramic Printer Large Format

The Konica Minolta KM1024i SHE printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure.

The Konica Minolta KM1024i SHE printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted. The high-density structure featuring 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality. The Konica Minolta KM1024i SHE printhead offers a Maximum Drive Frequency of 60kHz, approximately 3 Times greater than that of the KM1024 Series, which makes it the ideal inkjet printhead for development of single-pass system inkjet printers capable of high-speed printing.

The Konica Minolta KM1024i SHE printhead incorporates only approximately one-third of the petroleum-derived materials and toxic chemicals used in the current KM1024 Series. In addition, the nozzle unit surface area is the same as that of the KM1024 Series.

Specifications :
• Technology: Piezo Drop On-Demand
• Native Resolution: 360 dpi
• Cal. Droplet Size: 6 pl
• Max. Drops in Greyscale: 8 drops
• Tot. Amount of Nozzles: 1024 (256 nozzles per line)
• Print Width: 72 mm
• Typical Firing Frequency: 50 Khz
• Max Firing Frequency: 60 kHz
• Ink Compatibility: UV Inks
• Heater: integrated
• Dimensions: W131mm x D18mm x H94mm
• Weight: Approx. 150g

Printer compatibility :

Allwin
   Allwin S320UV
   Allwin S500UV
   Allwin UVT 2030
   Allwin UVT 2512
   Allwin UVT+ 2030
   Allwin UVT+ 2512

Docan H1000

Flora HJ 5000UV

Human Digital Technology M-JET

IIJ ColourPrint-72

JHF Vista
   JHF Vista R3300
   JHF Vista R6000
   JHF Vista V300UV
   JHF Vista V500UV

Optimum Digital KR Hybrid UV

Skyjet
   Skyjet FT2512i
   Skyjet FT3020i

Taimes T50UV
