- New
- On sale!
Brand: Brother
Brother OEM Printhead for GT-341, GT-361, GT-381 Printers. This printhead is for ANY COLOR (C,M,Y,K,W)
Brand: Spectra
The Sapphire QS-256/80 AAA printhead features 256 independent channels, arranged in a single row of nozzles at 100 dots-per-inch spacing.
Banner
Banner

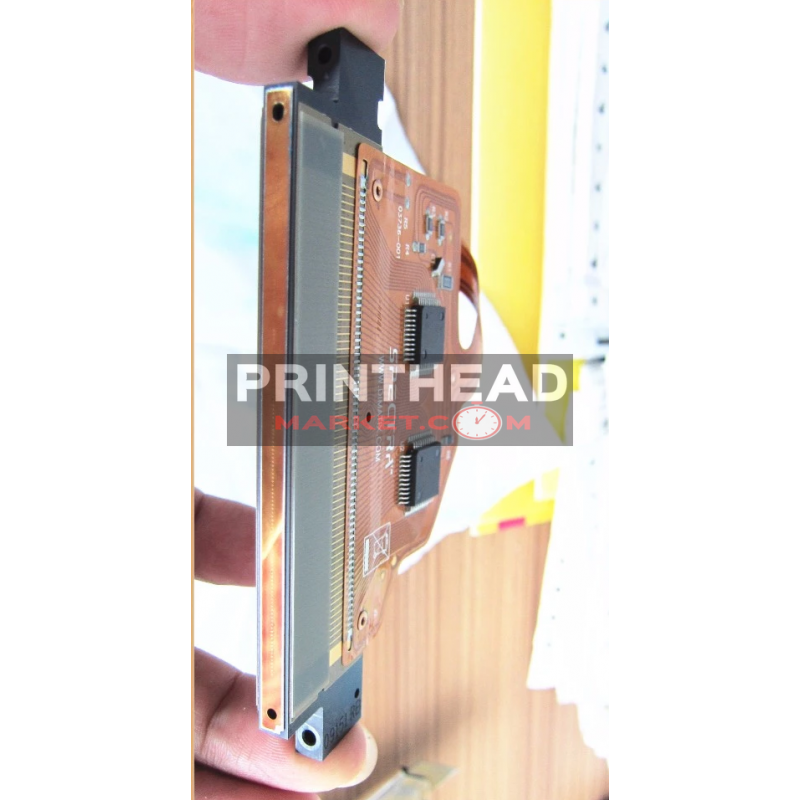

The Spectra Nova JA 256/80 print head is a high performance, robust and reliable jetting assembly designed for a broad range of industrial and commercial printing applications at resolutions up to 450 dpi.
The Spectra Nova JA 256/80 AAA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 450 dpi. Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 jets. The nozzles are arranged in a single line, at a 0.011 inch distance between nozzles. The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are possible. This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually.
These Spectra heads are manufactured in the US and passed Dimatix Spectra US quality control tests to ensure the best durability. It carries a manufacturer product warranty.
This is the original Vutek print head (number AA90268 and AA90513).
Specifications
- Technology: Piezo Electric
- Max. Resolution: 450 dpi
- Cal. Droplet Size: 80 pico litre
- Adj. Range for Droplet Size: 70-85 pico litre
- Tot. Amount of Nozzles: 256
- Nozzle Spacing: 279 microns
- Nozzle Diameter: 52 microns
- Firing Frequency: 20 kHz
- Operating Temperature: up to 90°C
- Ink Compatibility: Solvent, water-based and UV Inks
Agfa
Anapurna 100
Anapurna L
Anapurna XL
DGI
PolaJet PS-2504
PolaJet PS-3204
PolaJet PS-3204D
PolaJet PS-3206D
Dilli
Neo Plus UVP-1606
Neo Plus UVP-1606W
Neo Plus UVP-2506
Neo Plus UVP-2506W
Eurotech
Eagle S6
Eagle S6²
Eagle S8
Eagle S8²
Malakan
Mermaid
Pars
HP
Fresco 3200
Scitex FB7500
Scitex XP2100 (Expedio 3200)
Scitex XP2300
Scitex XP2500
Scitex XP5100 (Expedio 5000)
Scitex XP5300 (Expedio Revolution)
Scitex XP5500
Tempo
Tempo II UV
Kornit
931DS
Avalanche
Avalanche DC Pro
Thunder 932
Storm II
Markem-Imaje
5800
Mutoh
Cobra S100UV
Cobra S65UV
Osprey 102
Osprey 130
Osprey 75
PJ-1624NX (Toucan 64 4c)
PJ-1626FE (Toucan Hybrid)
PJ-1626NX (Toucan 64 6c)
PJ-2216NX (Toucan 87)
Teckwin
TeckPro 320
Teckpro H3200
Teckpro H5000
Teckpro S3200
VUTEk
UltraVu 150
UltraVu II 5330
Brand: Vutek
This Motor, Stepper NEMA 34,M-Drive Latching C is suitable for VUTEk GS3200 printers. This is the original VUTEk part (number 45087432). SKU: 45087432 Manufacturer part number: 45087432
Brand: Roland
This Assy, Scan Motor is suiatble for Roland XF-640 printers. SKU: 6702049010 Manufacturer part number: 6702049010
Brand: Vutek
This Kit Assy Y-Drive Replacement is suitable for VUTEk PressVU 320/400 printers. This is the original VUTEk part (number AA92145-FS). SKU: AA92145-FS Manufacturer part number: AA92145-FS
Brand: Brother
Brother GT-782 Print Head CMYK only. Part Number : SB4235101
Brand: Agfa
This Servo Motor Carriage (400W) is suitable for Agfa :Anapurna M4f printers. This is the original Agfa part (number D2+7590105-0003). SKU: D2+7590105-0003 Manufacturer part number: D2+7590105-0003
Brand: Mimaki
This S-Pump Assy is suitable for Mimaki JV3, JV5, JV33 and CJV30 printers. This is original Mimaki part (number M004868).
Brand: Roland
This Assy, Feed Motor is suitable for Roland CJ-540 printers. This is the original part (number 7811509000 replacing 22805342). SKU: 7811509000 Manufacturer part number: 7811509000
Reference: Power Supply
Brand: Roland
This power supply board is suitable for Roland FJ-540 printers. This is the original Roland part (number 1000007552 replacing number 22425112U0).
Albatros Pump Assy - WN-4L579This Pump Assy is suitable for Mutoh Albatros printers. This is the original Mutoh part (number WN-4L579).Printer compatibility Mutoh PJ-1304NX (Albatros)..
The Spectra Nova JA 256/80 print head is a high performance, robust and reliable jetting assembly designed for a broad range of industrial and commercial printing applications at resolutions up to 450 dpi.
