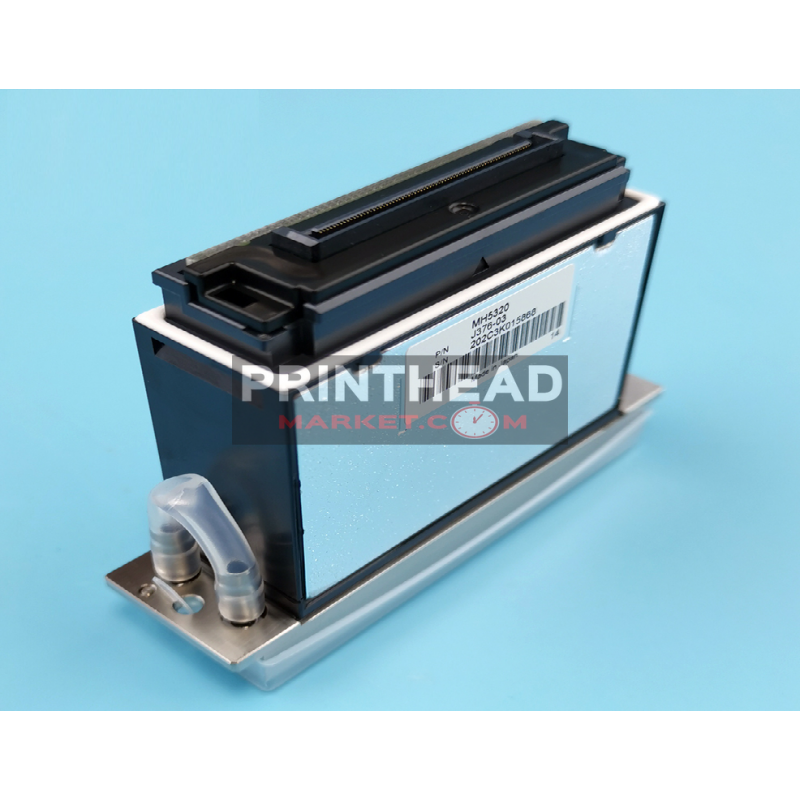

Original Ricoh MH5220 Printhead

Rating
$982.00
Tax excluded
Quantity

Description

This Ricoh head (MH5220 series) is compatible with UV based inks.

A 2.5 pl drop size allows for excellent print quality without graininess. With 1,280 nozzles configured in 4 x 150dpi rows, this head achieves high-resolution 600dpi printing. Additionally, the ink paths are isolated, enabling a single head to jet up to two ink colors.

Product Specifications

  • Dimensions: 89 x 24.7 x 64.2 mm (excluding cables)
  • Head materials: SST, Nickel alloy and Epoxy Adhesive
  • Number of nozzles: 1,280 (4 x 320 channels), staggered
  • Nozzle spacing: 0.1693 mm (1/150")
  • Max. number of color inks: 2 colors
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: 60° C
  • Drop volume: Binary mode : 2.5pl / Grey-scale mode : 2.5-9pl (depending on the ink)
  • Jetting frequency: 30kHz
  • Viscosity range: 10-12 mPa.s
  • Gray scale: 4 levels
  • Number of ink ports: 2 x dual ports
  • Alignment pin direction: front (standard)
  • Ink compatibility: UV Inks
  • Weight: 148 g

This printhead carries a manufacturer warranty. Country of origin : Japan

Printer compatibility

Sign Racer Flatbed 1610
